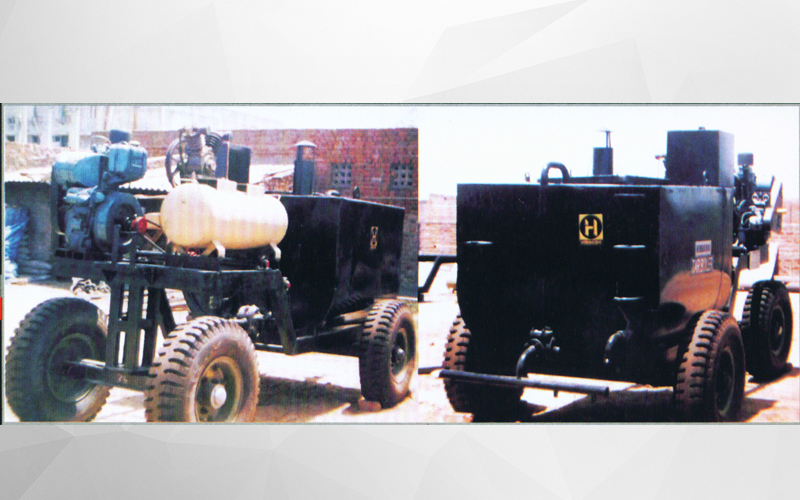

Bitumen Boiler Cum Sprayer
|ENGINE||:||Make : Kirlosker / Field Marshal / Top Land of 6.5 HP of air Cooled enginne, handle start diesel Engie Will be Provided or any Other make Standard.|
|BATTERY||:||Amrom / Exide or any other Standard make Battery Will be Provided.|
|CHASSIS||:||Chassis will be fabricated from MS Steel of Channel / I Beam.|
|TYRE||:||MRF/CEAT or Standard Make|
|HEATIG SYSTEM||:||A torch Burner will be Provided for heating Bitume, Diesel / Kerosee Will be Supplied to Burner with air.|
|BITUMEN PUMP||:||Bitumen Pump (Jacketed Type) of adequate Capacity Will be Provided.|
|VBELTS||:||Fenner or any Other Standard make V Belts will be Provided.|
|TANK SHELL||:||Tank Shell Will be Fabricated from MS Plate of 5MM and 50mm Glass Wool Will Be Provided ad will be Covered from Sheet.|
|DIESEL TANK||:||60Lit Diesel Tank of MS Plate will be Provided with Pipe lie and Valves.|
|TEMPERATURE GAUGE||:||0-300C Temp Gauge Will be Provided at Rear.|
|SPRAYING SYSTEM||:||Spray bar will be Provided with Nozzles at rear end with valves Retur lie.|
|TRASMISSION SHAFTS||:||Transmission Shafts will be Provided of MS / EN 8 Steel.|
|CHAIN & SPROCKETS||:||Chain & Sprockets will be Provided of Stadard make Suitable to Adequate Capacity with lock arrangements.|
|PEDESTALS & BEARINGS||:||Bearings of NBC / TATA / SKF / SAG Make Pedestals of TR / NTN Male Will be Provided.|
|AXLES||:||Axles Will Be Fabricated from MS Channel / Beam With automotive type of hub & Bolts Suitable to tyre Size.|
|DRAW BAR||:||A Swivelling type Draw bar will be Provided for easy mobility or towing from one Place to another Place.|
Drum Lifting arrangement will be Provided at extra cost.
Dust Cleaning System with valve & Hose.
Hand Spray System with Nozzle.
